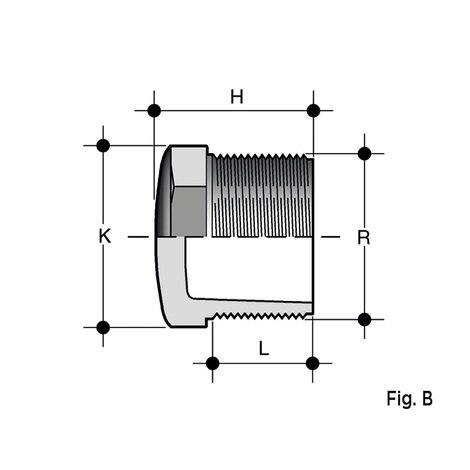

| Referencia | R | PN | E | H | K | L | g |
|---|---|---|---|---|---|---|---|
| PFV012 | 1/2" | 16 | 28 | 26 | 23 | 15 | 8 |
| PFV034 | 3/4" | 16 | 34 | 30 | 28 | 16,3 | 11 |
| PFV038 | 3/8" | 16 | 22 | 22 | 18 | 11,4 | 4 |
| PFV100 | 1" | 16 | 40 | 34 | 35 | 19,1 | 21 |
| PFV112 | 1"1/2 | 16 | 58 | 40 | 51 | 21,4 | 46 |
| PFV114 | 1"1/4 | 16 | 52 | 38 | 44 | 21,4 | 30 |
| PFV200 | 2" | 16 | 70 | 47 | 64 | 25,7 | 74 |
| PFV212 | 2"1/2 | 16 | - | 61 | 80 | 30,2 | 180 |
| PFV300 | 3" | 16 | - | 71 | 93 | 33,3 | 245 |
| PFV400 | 4" | 16 | - | 87 | 118 | 39,3 | 550 |
