Female Clapet Valve
The Clapet backflow preventer valve is to be installed in white water drainage pipes and allows the normal outflow of water into water bodies by preventing backflow. This function is ensured by the opening of a "clapet" actuated by the thrust of water from the drain. The weight and 11° inclination of the clapet keep the opening closed.

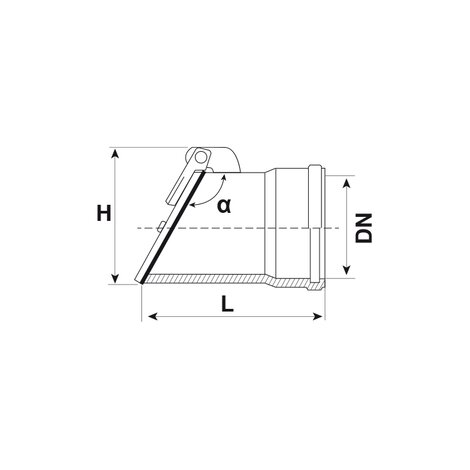

| Reference | measurement | note | Category | Colour | DN (mm) | H (mm) | L (mm) | α | RAL | Design |
|---|---|---|---|---|---|---|---|---|---|---|
| P5525F1 | 250 | Material: PVC-U complying to EN1401 - Flap seal, EPDM + CR closed cell expanded rubber - Hinge: stainless steel AISI 304 with self locking nut - Flap closure tilt 11° - Up Ø 200 supplied in carton box | Non-return valves | Red | 250 | 280 | 260 | 11° | RAL 8023 | TYPE B |
| P5530F1 | 315 | Material: PVC-U complying to EN1401 - Flap seal, EPDM + CR closed cell expanded rubber - Hinge: stainless steel AISI 304 with self locking nut - Flap closure tilt 11° - Up Ø 200 supplied in carton box | Non-return valves | Red | 315 | 350 | 300 | 11° | RAL 8023 | TYPE B |
