FDV

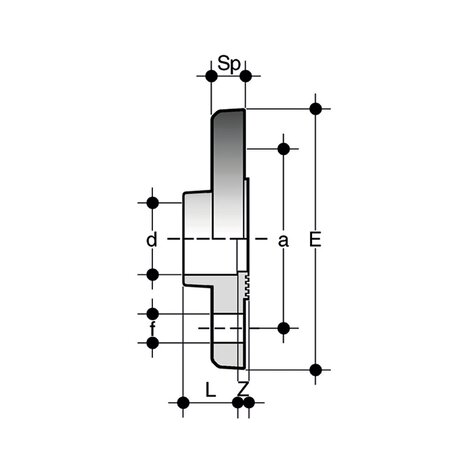

Fixed flange with solvent weld socket according to EN/ISO/DIN with serrated raised face for flat gaskets (for gasket sizes, see QHV). Drilling: PN 10/16 up to DN 150; PN 10 from DN 200

Reference	d	DN	MPA (bar)	a	E	f	L	**(Nm)	Sp	Z	g
FDV025	25	20	10	75	105	14	19		12	4,5	105
FDV032	32	25	10	85	115	14	22	10	14	4,5	150
FDV040	40	32	10	100	140	18	26	13	15	4,5	230
FDV050	50	40	10	110	150	18	31	13	16	4,5	280
FDV063	63	50	10	125	163	18	38	15	18	4,5	390
FDV075	75	65	10	145	185	18	44	17	19	5	525
FDV090	90	80	10	160	200	18	51	18	20	7	710
FDV110	110	100	10	180	220	18	61	20	22	8	955
