EASY CLIP LINK

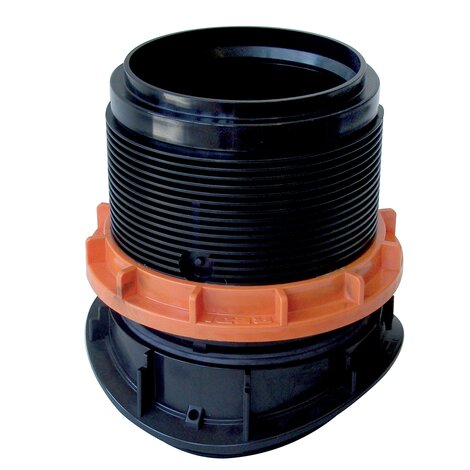

Easy Clip Link Ø160 (for corrugated pipes, smooth compacts, stoneware, concrete, fiberglass)
Easy Clip is a connection fitting that allows connection (Ø160 and Ø200) to a pipeline.
The anchoring of the fitting is mechanical,does not require adhesives, and is suitable for both installations on new and existing manifolds.
Notes:
Standard lip gasket.
Each clip is packaged in individual box, complete with appropriate tightening wrench, tube of lubricant and installation instructions.
Lubricant included: Camon slip Art. 6741500 tube gr. 150

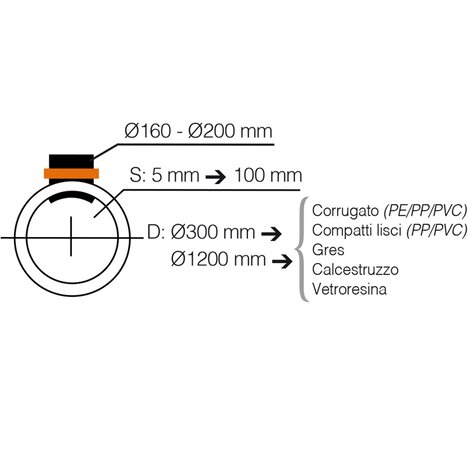

Projection of Easy Clip installed on tube: H2 = H1 - S.
Calculation is estimated to the nearest 1cm.
S= thickness of pipe in mm
GUIDE TO CHOOSING THE CORRECT MECHANICAL CONNECTION EASY CLIP CONFIGURATOR
| Reference | Box units | measurement | certificate | note | Category | H1 (mm) | Ø (mm) |
|---|---|---|---|---|---|---|---|
| 1E16L58 | 1 | 160 | CSTB: ANF EN 1401 / MPA: DIN EN 13598-1 | A spanner is supplied with each saddle | EASY CLIP special mechanical connections | 255 | 160 |
| 1H16L58 | 1 | 160 | CSTB: ANF EN 1401 / MPA: DIN EN 13598-1 | A spanner is supplied with each saddle | EASY CLIP special mechanical connections | 255 | 160 |
| 1K16L58 | 1 | 160 | CSTB: ANF EN 1401 / MPA: DIN EN 13598-1 | A spanner is supplied with each saddle | EASY CLIP special mechanical connections | 255 | 160 |
