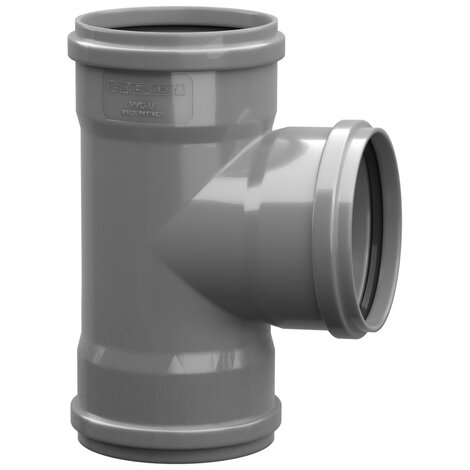

Drift 87°30' F/F
REDI PVC sewer fittings are suitable for the construction of underground non-pressure pipelines for the conveyance of civil and industrial wastewater discharges (white, black and mixed water), industrial and agricultural discharges and wastewater in general within the limit of the chemical resistance of the materials.
The technical characteristics of the fittings comply with EN 1401, the size range covers diameters from DN 110 to DN 630. The jointing system is socket type with lip seal. The joints are made with removable lip seals constructed and certified in accordance with EN 681-1 and DIN 4060.
Notes: locked lip gasket
Main features:
/pim/redi/images/Fognatura/0451242_8023.jpg
| Reference | product.detail.attribute.mainFeatures | Box units | measurement | Nominal diameter | Category | DN (mm) | DN1 (mm) | S (mm) | S1 (mm) | Z1 (mm) | Z2 (mm) | Z3 (mm) | L1 (mm) | L3 (mm) | α | RAL | Gasket | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0451641 | /pim/redi/images/Fognatura/0451242_8023.jpg | 5 | 160 | 160 | UDG sewage fittings PVC-U | 160 | 160 | 4,0 | 4 | 95 | 99 | 99 | 72 | 72 | 87° 30' | 8023 | Bloccata/Fixed | - |
| 1452041 | /pim/redi/images/Fognatura/0451242_8023.jpg | 1 | 200 | 200 | UDG sewage fittings PVC-U | 200 | 200 | 4,9 | 4,9 | 120 | 120 | 120 | 86 | 86 | 87° 30' | 8023 | Bloccata/Fixed | - |
| 1453041 | /pim/redi/images/Fognatura/0451242_8023.jpg | 1 | 315 | 315 | UDG sewage fittings PVC-U | 315 | 315 | 7,7 | 7,7 | 211 | 185 | 185 | 117 | 117 | 87° 30' | 8023 | Bloccata/Fixed | - |
| 1454051 | /pim/redi/images/Fognatura/0451242_8023.jpg | 1 | 400 | 400 | UDG sewage fittings PVC-U | 400 | 400 | 9,8 | 9,8 | 250 | 270 | 230 | 175 | 175 | 87° 30' | 8023 | Standard | Thermoformed |
