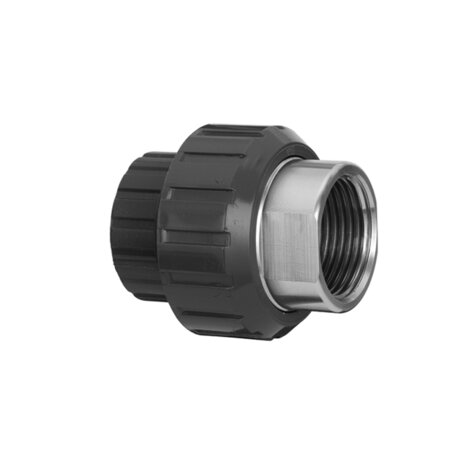

BIFXV

Series of fittings designed for conveying fluids under pressure with threaded and solvent weld cold chemical jointing systems (solvent welding) using suitable solvent cement and cleanerprimer.

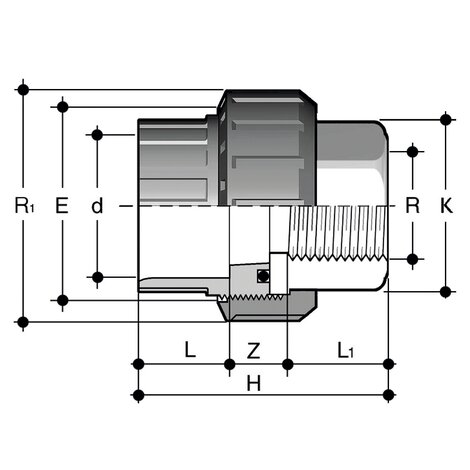

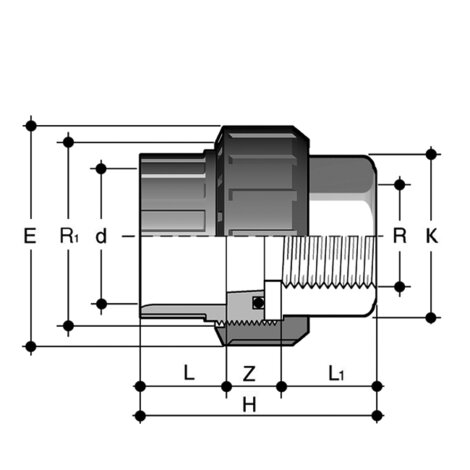

Reference	d x R	R₁	PN	E	H	K	L	L₁	Z	g
BIFXV016038E	16 x 3/8"	3/4"	16	33	45,5	20	14	13,5	18	50
BIFXV016038F	16 x 3/8"	3/4"	16	33	45,5	20	14	13,5	18	50
BIFXV020012E	20 x 1/2"	1"	16	41	48,5	25	16	16,5	16	81
BIFXV020012F	20 x 1/2"	1"	16	41	48,5	25	16	16,5	16	81
BIFXV025034E	25 x 3/4"	1"1/4	16	50	54,5	32	19	18,5	17	152
BIFXV025034F	25 x 3/4"	1"1/4	16	50	54,5	32	19	18,5	17	152
BIFXV032100E	32 x 1"	1"1/2	16	58	59,5	38	22	19,5	18	170
BIFXV032100F	32 x 1"	1"1/2	16	58	59,5	38	22	19,5	18	170
BIFXV040114E	40 x 1"1/4	2"	16	72	68,5	48	26	21,5	21	353
BIFXV040114F	40 x 1"1/4	2"	16	72	68,5	48	26	21,5	21	353
BIFXV050112E	50 x 1"1/2	2"1/4	16	79	84,5	55	31	23	30,5	435
BIFXV050112F	50 x 1"1/2	2"1/4	16	79	84,5	55	31	23	30,5	435
BIFXV063200E	63 x 2"	2"3/4	16	98	94,5	69	38	27	29,5	779
BIFXV063200F	63 x 2"	2"3/4	16	98	94,5	69	38	27	29,5	779
BIRXV016038F	16 x 3/8"	3/4"	16	33	58,5	20	14	10,5	34	74
BIRXV020012F	20 x 1/2"	1"	16	41	65	25	16	13,5	35,5	123
BIRXV025034F	25 x 3/4"	1"1/4	16	50	72,5	32	19	15	38,5	215
BIRXV032100F	32 x 1"	1"1/2	16	58	80	38	22	17,5	40,5	269
BIRXV040114F	40 x 1"1/4	2"	16	72	91	48	26	19,5	45,5	516
BIRXV050112F	50 x 1"1/2	2"1/4	16	79	101	55	31	19,5	50,5	639
BIRXV063200F	63 x 2"	2"3/4	16	98	122,5	69	38	24	60,5	1111
